6.4V LiFePO4 Battery Pack 14500 500mAh For Decorative Lighting

Place of Origin : Shenzhen zhuhai

Brand Name : TAC OEM ODM

Certification : MSDS REACH ROHS

Model Number : PIFP0006

MOQ : 200PCS

Price : usd 10

Packaging Details : Follow UN38.3 Rule

Delivery Time : 7 days for single cell 15-20 days for battery pack

Payment Terms : TT, LC, Paypal, etc

Supply Ability : 50000 pack for one week

type : LiFePO4 Battery

voltage : 6.4v

Capacity : 500 mah

warranty : 12 months

circle life : 2000 times

pvc : blue

assemble : 2s1p

application : Decorative Lighting

Contact Now

6.4V LiFePO4 Battery Pack 14500 500mAh For Decorative Lighting

Quick Detail:



  1. Nominal Voltage: 6.4V; full Charging Voltage: 7.3V
  2. Rated Capacity: 500mAh,mini capacity 450mah
  3. The battery pack with pcb Connecting the wire one the pole with customer's require
  4. Deep circle life : 2000 times





Specification for 6.4V LiFePO4 Battery Pack 14500 500mAh For Decorative Lighting



No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

500mAh

Standard discharge(0.2C5A) after Standard charge

Minimum

450mAh

2

Nominal Voltage

6.4V

Mean Operation Voltage

3

Voltage at end of

Discharge

4.0V

Discharge Cut-off Voltage

4

Charging Voltage

7.3V



5

Internal Impedance

≤200mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles less than 5 times

6

Standard charge

Constant Current 0.2C5A

Constant Voltage 7.3V

0.01 C5A cut-off



7

Standard discharge

Constant current 0.2C5A

end voltage4.0V



8

Fast charge

Constant Current 1.0C5A

Constant Voltage 7.3V

0.01 C5A cut-off



9

Fast discharge

Constant current 1.0C5A

end voltage 4.0V



10

Maximum Continuous Charge Current

1.0 C5A



11

Maximum Continuous Discharge Current

1.5 C5A



12

Operation Temperature Range

Charge: 0~45℃

60±25%R.H.

Bare Cell





Discharge: -10~60℃



13

Storage Temperature Range

Less than 1 year: -20~25℃

60±25%R.H.

at the shipment state





less than 3 months: -20~40℃







Less than 7 day : -20~65℃



14

Cell Dimension

High:50.0±0.2 mm

Initial Dimension





Diameter: 14.0±0.4 mm






Packing Manner for Battery Pack

The battery pack protected by small sponge bag one by one

then put the3-5 bags into standard paper box , 5-8 box for one standard carton





6.4V LiFePO4 Battery Pack 14500 500mAh For Decorative Lighting

6.4V LiFePO4 Battery Pack 14500 500mAh For Decorative Lighting

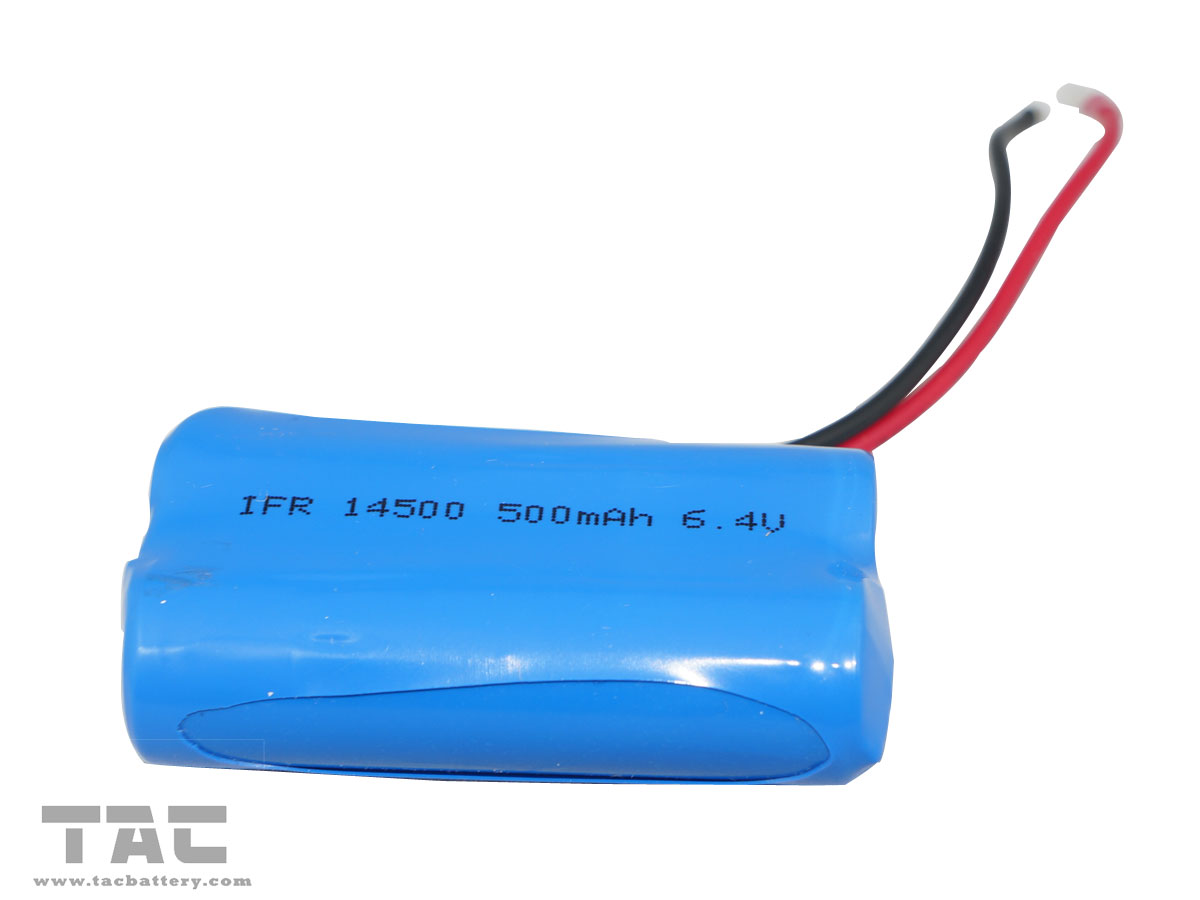

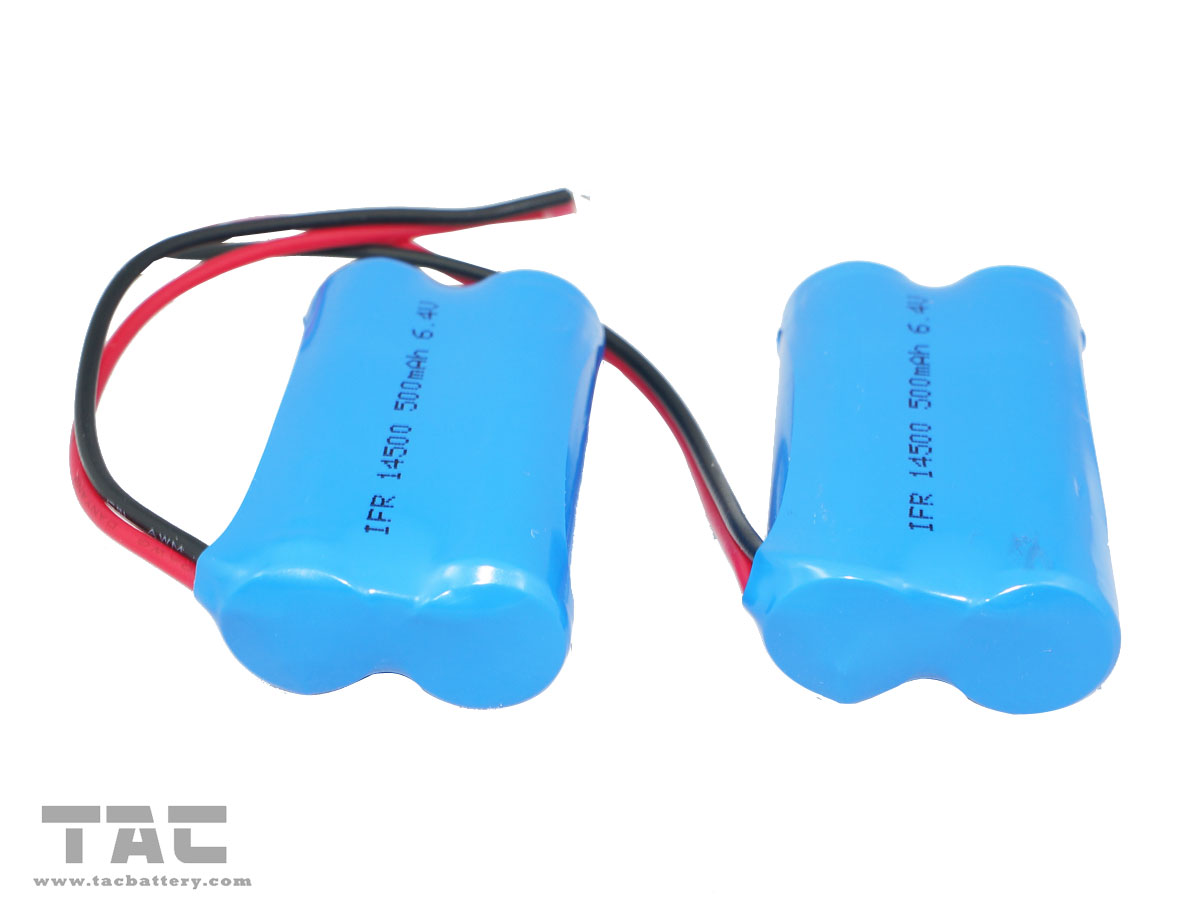

Image :6.4V 14500 500mAh LiFePO4 Battery Pack for decorative lighting





6.4V LiFePO4 Battery Pack 14500 500mAh For Decorative Lighting


6.4V LiFePO4 Battery Pack 14500 500mAh For Decorative Lighting



Application for6.4V 14500 500mAh LiFePO4 Battery Pack for decorative lighting

1  Solar system, energy storage system, UPS. home wall etc.
2. EV  Ecar Golf carts, electric vehicles, motorcycle, automobile starter battery, trolley, electric boat, AGV etc.
3. Same capacity and voltage for Sealed Lead-Acid battery replacement.
4. medical device Forklift, srubbing machine, motive power bank etc.


6.4V LiFePO4 Battery Pack 14500 500mAh For Decorative Lighting

Similar Proudction for Lifepo4 cell

6.4V LiFePO4 Battery Pack 14500 500mAh For Decorative Lighting
