Portable Battery Chargers 12.6V 2.5A For 3S Li-ion Battery Pack

Portable Battery Chargers 12.6V 2.5A For 3S Li-ion Battery Pack

quick detail

1. Shell material: Plastic, and the size is L:110*W:50*H:30mm

2. DC cable: AWM 2468 20AWG*2C,with word on the cord,Length:1M,DC plug5.5*2.1*10mm.in+/out-

Specification:

Input Characteristics:

2.1 Input Voltage:

     Nominal Voltage:100-240Vac

     Variation Range:90-264Vac

2.2 Input Frequency:

    Nominal Frequency:50/60Hz

     Variation Frequency:47-63Hz

2.3 Input Current:

1Arms max At any input voltage and rated, DC output rated load.

2.4 Inrush Current:

15Amps Max. Cold start at 240Vac input, with rated load and 25℃ambient.

2.5 AC (Ac Leakage Current:

0.25mA Max At 240Vac input.

3.Output Characteristics:

3.1 Power Output;

           Voltage      Min. Load     Max. Load    Peak       Output Power

      +12.6Vdc        0A       2.4-2.6A       30-32W       31.5W

3.2 Combined Load/Line Regulation:

     Voltage  Min. Voltage    Max. Voltage     Line Regulation   Load Regulation

     +12.6Vdc    12.55V       12.75V           ±3%            ±5%

3.3 Turn On Delay Time:

      2 second Max. At 115Vac input and output Max. Load.

3.4 Rise Time:

      40mS Max. At 115Vac input and output Max. Load.

3.5 Hold Up Time:

      5mS Min. At 115Vac input and output Max. Load.

3.6 Efficiency:

      78%Min.At 100Vac input and output Max. Load.

      80%Min.At 240Vac input and output Max. Load.

3.7 Dual-color indicator: Charging: Red

Fully charged or no load: Green

Pictures:

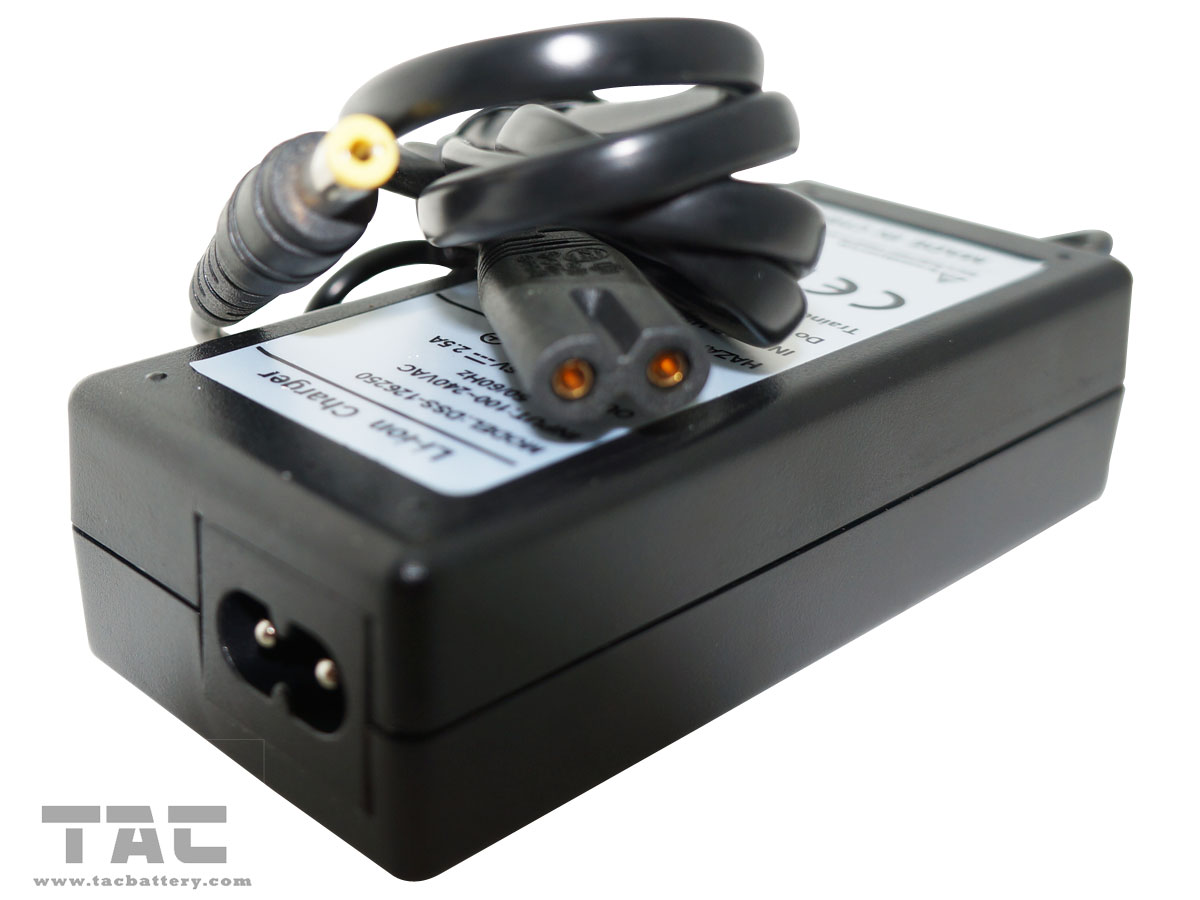

12.6V 2.5A Portable Battery Charger for 3S Li-ion Battery Pack
