Battery Vaporizer 3.7V 1100MAH E-cig Big Battery LIR13700 55mΩ

Product Categories

Guang Zhou Sunland New Energy Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Place of Origin : shenzhen

Brand Name : TAC

Certification : UL,ROHS

Model Number : PLIC0102

MOQ : 5000pcs

Price : Price Negotiable

Packaging Details : 500pcs/carton

Delivery Time : 14Days

Payment Terms : TT, LC, Paypal, etc

Supply Ability : 100000Piece/days

Product Name : e-cigarette battery

Nominal Voltage : 3.7V

Voltage at end of Discharge : 3.0V

Internal Impedance : ≤55mΩ

Maximum Continuous Operation Current : 1100mA

Storage Temperature Range : less than 6 months: -10~35℃

Contact Now

Battery Vaporizer 3.7V 1100MAH E-cig Big Battery LIR13700 55mΩ

Detailed Product Description

The model name is LIR13700/1100mAh,The Vol is 3.7V
Repeated use or Single use are available
Electronic cigarette liquid smoke has been approved by FDA, other parts have passed FCC certification and European countries ROSH. CE. three certification.
There are LIR08500P,LIR08570P,LIR08600P,LIR75500,LIR08600P,LIR13450 For your choice

Specification:

No.	Item	General Parameter		Remark
1	Rated Capacity	Typical	1100mAh	Standard discharge(1.2A) after Standard charge
1	Rated Capacity	Minimum	1050mAh	Standard discharge(1.2A) after Standard charge
2	Nominal Voltage	3.7V		Mean Operation Voltage
3	Voltage at end of Discharge	3.0V		Discharge Cut-off Voltage
4	Charging Voltage	4.2±0.05V
5	Internal Impedance	≤55mΩ		Internal resistance measured at AC 1KH_Zafter 50% charge The measure must uses the new batteries that within one week after shipment and cycles less than 5 times
6	Standard charge	Constant Current 0.5C₅A Constant Voltage 4.2V 0.01 C₅A cut-off		Charge time : Approx 3.0h
7	Standard discharge	Constant current 0.5C₅A end voltage 3.0V
8	Maximum Continuous Operation Current	1100mA
9	Operation Temperature Range	Charge: 0~45℃		60±25%R.H. Bare Cell
		Discharge: -10~60℃
10	Storage Temperature Range	Less than 1 month: -20~40℃		60±25%R.H. at the shipment state
		less than 6 months: -10~35℃
11	Cell Dimension	Length:Max.70.0mm		Initial Dimension
		D:Max.13.2mm

Pictures:

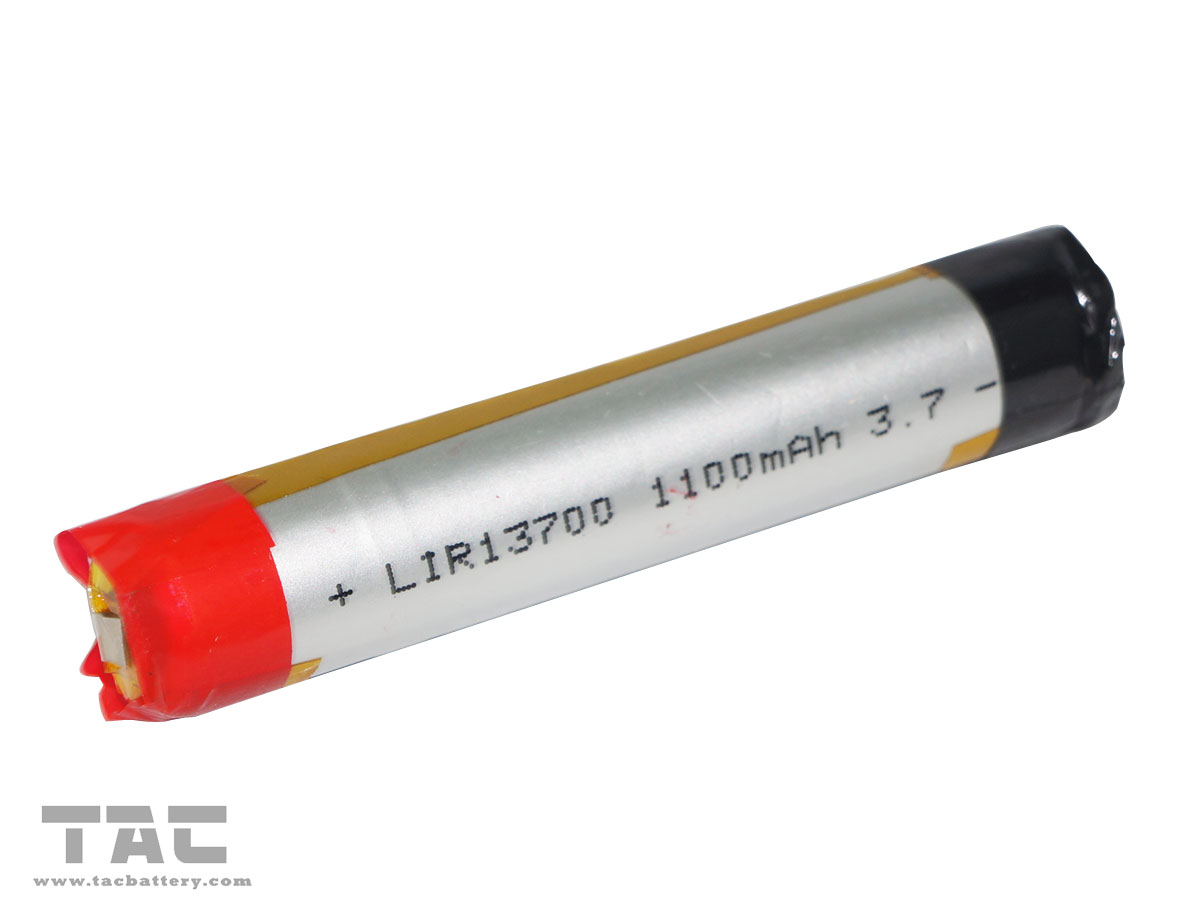

Big Battery Vaporizer 3.7V LIR13700/1100mAh E-cig Big Battery For Electronic cigarette

Application:

Big Battery Vaporizer 3.7V LIR13700/1100mAh E-cig Big Battery For Electronic cigarette
