Rechargeable 3.2V LiFePO4 Battery 26650 3000mAh Energy Type for Backup Systems

Place of Origin : Shenzhen zhuhai

Brand Name : TAC OEM ODM

Model Number : PIFC04214

Certification : MSDS REACH ROHS

MOQ : 200PCS

Price : usd 4-6

Delivery Time : 7 days for single cell 15-20 days for battery pack

Payment Terms : TT, LC, Paypal etc

Supply Ability : 50000 pack for one week

Packaging Details : Follow UN38.3 Rule

material : LiFePO4 Battery

capactity : 3000mah

voltage : 3.2V

Warranty : 1 year

circle life : 2000 times

pvc : blue

pcb : with or without customer's requrie

application : back up

Contact Now

Rechargeable 3.2V LiFePO4 Battery 26650 3000mAh Energy Type for Backup Systems


Features for Rechargeable 3.2V LiFePO4 Battery 26650 3000mAh Energy Type for Backup Systems

Excellent abuse tolerance and environmentally friendly
Excellent calendar life, 10X cycle life vs. conventional lithium ion
With  greater power and energy density and lower impedance.
Suitable for a wide variety of applications and system designs.
Proven performance in the toughest conditions, combining durability, reliability, and safety
Offers an excellent combination of price-performance.



Application for Rechargeable 3.2V LiFePO4 Battery 26650 3000mAh Energy Type for Backup Systems



  1. Power tool Portable high power devices
  2. UPS Stationary battery backup systems
  3. ESS Grid stabilization energy storage systems
  4. EV E CAR Commercial truck and bus hybrid electric vehicles (HEVs)

 Battery Specification List:

No.

Items

Specifications

1

Charge cut-off voltage

3.65V

2

Nominal voltage

3.2V

3

Minimal capacity

3300mAh @ 0.2C Discharge

4

Nominal capacity

3350mAh @ 0.2C Discharge

5

Charge current

1C

6

Standard charging method

1C CC (constant current) charge to 3.65V, then CV (constant voltage 3.65V) charge till charge current decline to £ 0.05C

7

Charging time

Standard charge: 2.0 hours Ref

8

Max. charge current

2C

9

Max. continue discharge current

10A (Cell skin temperature cannot exceed 80°C)

10

Discharge cut-off voltage

2.0V

11

Operating temperature

Charging:      -10°C ~ 45°C
Discharging: -20°C ~ 60°C
(Cell skin temperature cannot exceed 80°C)

12

Storage temperature/humidity

Temperature -10°C ~ +35°C
Humidity 65%±20%RH
(Recommended to store 23 ± 5°C for long term storage)

13

Cell Weight

80.0g±1.0g

14

Cell Dimension

Length:       65.0±0.3 mm
Width:         26.2±0.2 mm



Packing Manners



Each battery pack is Individual package according of the international transportation rules to avoid circle short ,Each battery pack protected by thicken sponge bag and 20 pcs in standard paper export document



Rechargeable 3.2V LiFePO4 Battery 26650 3000mAh Energy Type for Backup Systems

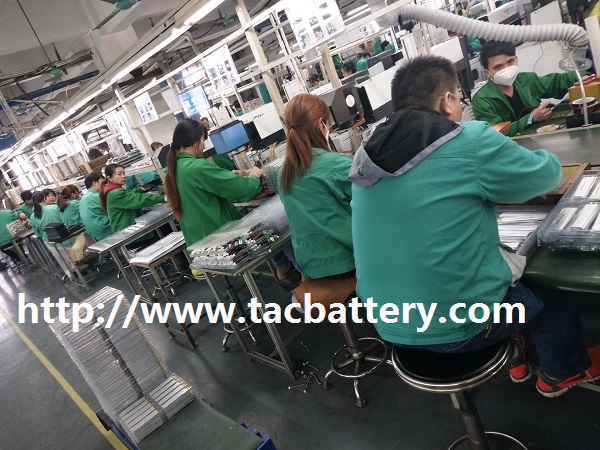

Quality Control Process



IQC test all raw material including of the anode and cathode , shell and other part.

Made the lifePO4 battery cell follow standard work flow and 100%  test voltage capacity resistance before  one by one before pack with pvc by auto machina



Rechargeable 3.2V LiFePO4 Battery 26650 3000mAh Energy Type for Backup Systems



Battery Picture

Rechargeable 3.2V LiFePO4 Battery 26650 3000mAh Energy Type for Backup Systems

Other Size for LifePO4 Battery

IFR18500  1000MAH  3.2V

IFR18500  1200MAH  3.2V

IFR18650  1400MAH  3.2V

IFR18650  1500MAH  3.2V

IFR26650   3300MAH 3.2V

IFR32650   3500MAH 3.2V

And more



Storing the Batteries

The batteries should be stored at room temperature, charged to about 30% to 50% of capacity.
We recommend that batteries be charged about once per three months to prevent over-discharge.



Period of Warranty

The period of warranty is 1 year from the date of shipment.TAC BATTERY guarantees to give a replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse.
