Polymer Lithium Ion Batteries LP052030 3.7V 260mAh for Toy

Guang Zhou Sunland New Energy Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Polymer Lithium Ion Batteries LP052030 3.7V 260mAh for Toy

Place of Origin : guangzhou

Brand Name : TAC

Model Number : LP052030

Certification : UL, Rohs

MOQ : 500pcs

Price : usd 3.0

Packaging Details : 5 pcs sample 3days after order Mass order with stock 15days after T/T Without stock 45days

Delivery Time : 14days after order

Payment Terms : T/T, LC, Paypal etc.

Supply Ability : 30K/Day

material : Polymer Lithium Ion Batteries

capacity : 260mah

voltage : 3.7v

circle life : 500 times

warranty : 1 year

size : 5*20*30mm

pcb : with

Contact Now


High Capacity LP052030 3.7V 260mAh Polymer Lithium Ion Batteries for Toy



Feature:




  1. The batteries used in aeromodelling toy
  2. Place of Origin Guangdong China (Mainland)
  3. Brand Name TAC
  4. Model Name; LP052030
  5. Battery Type :polymer lithium-ion battery
  6. Nominal Voltage 3.7V
  7. Nominal Capacity 260mAh
  8. Size :5mm(T)*20mm(w)30mm(h)


Specification For
High Capacity LP052030 3.7V 260mAh Polymer Lithium Ion Batteries for Toy

No.

Item

Rated Performance

Remark

1

Rated Capacity

Minimum

260mAh

Standard discharge(0.2C C5A)
after Standard charge

2

Nominal Voltage

3.7V

Mean Operation Voltage During Standard Discharge After
Standard  Charge

3

Voltage at end of
Discharge

3.0V

Discharge Cut-off Voltage

4

Charging Voltage

4.2±0.03V



5

AC  (1KHz) Impedance
 New Cell Max.(mW)

≤80mΩ



6

Standard charge

Constant Current 0.5C5A
Constant Voltage 4.2V
0.01 C5A cut-off

Charge time : Approx 4.0h

7

Standard discharge

Constant current 0.2 C5A
end voltage 3.0 V



8

Fast charge

Constant Current 1C5A
Constant Voltage 4.2V
0.01 C5A cut-off

Charge time : Approx 2.5h

9

Fast discharge

Constant current 1 C5A
end voltage 3.0 V



10

Maximum Continuous
 Charge Current

1 C5A



11

Maximum Continuous
Discharge Current

1.5 C5A



12

Operation Temperature Range

Charge: 0~45℃

60±25%R.H.
Be Cell

Discharge: -20~60℃

13

Storage Temperature
Range

Less than 1 year: -20~25℃

60±25%R.H.
at the shipment state

less than 3 months: -20~40℃

14

Weight

Approx :40g

Bare Cell

15

Cell  Dimension

Length: Max.3m0m

Initial  Dimension

Width: Max.20mm

Thickness: Max. 5mm


Pictures:
High Capacity GSP052030 3.7V 260mAh Polymer Lithium Ion Batteries for  toy

The dimension measurement shall be implemented by instruments with equal or more precision scale of 0.01mm.

Polymer Lithium Ion Batteries LP052030 3.7V 260mAh for Toy


Application



Global localization satellite GPS,  Bluetooth,  portable type media products(Mp3, Mp4,  DVD),  notebook,  tablet PC,  the electronic toy,  e-bike, model ship,

the power tool,  camera,  the multi-purpose PDA telephones.


Similar Production List


Model

Nominal Voltage (V)

Typical Cap.

Dimension(mm)

(mm)

Thickness

Width

Height

073496DHP

3.7

2100

7.8

34

96

LP0567100

3.7

3400

4.8

67

100

LP066166

3.7

2750

6.1

61

66

LP555376

3.7

2300

5.6

53

76

LP085065

3.7

2600

7.8

50

65

LP085080

3.7

3400

8

50

80

LP0845131

3.7

5100

7.5

45

131

LP0831134

3.7

4000

8.1

31

132

LP55100100

3.7

5600

5.5

100

100

LP605590

3.7

3400

6

55

90

LP9051109

3.7

5500

9

51

109

LP9551119

3.7

6800

9.5

51

119

*LP7044125

3.7

4200

7

44

125

*LP7545135

3.7

4500

7.5

45

135

LP704374

3.7

2200

7

43

74

LP854374

3.7

3000

8.5

43

74

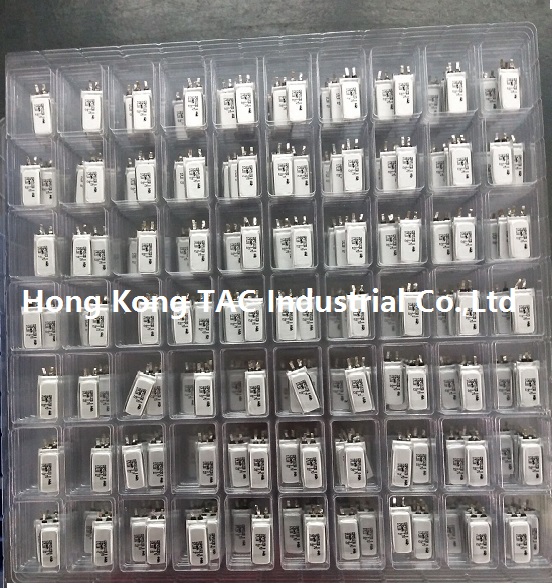

Package Photo

Polymer Lithium Ion Batteries LP052030 3.7V 260mAh for Toy



Aging Equipment



Charge and discharge the battery cell to sort the full 100% truth capacity

Polymer Lithium Ion Batteries LP052030 3.7V 260mAh for Toy
