Metal Housing 60V 30AH Lifepo4 Battery Pack For Motor Tricycle Deep Circle

Brand Name : TAC

Model Number : 60V 20AH 30AH

Certification : Reach Rohs Msds

Place of Origin : shenzhen

MOQ : 20 SET

Price : usd 500-1000

Supply Ability : 50000set each month

Delivery Time : 20 days after order confirm

Packaging Details : 1 set for 1 pallet

type : lifepo4 battery

capacity : 20ah 30ah

voltage : 60v

single cell : IFR32650 5000MAH 3.2V

Assemble : 20s5p

housing : metal

warranty : 3 years

size : oem odm

Contact Now

60V 20AH 30AH lifepo4 Battery Pack for Motor Tricycle Deep Circle

Advantage for 60V 20AH 30AH lifepo4 Battery Pack for Motor Tricycle Deep Circle

high energy with long distance cruise capability
stable voltage platform provide more energy,make the battery compact size and light weight
olivine structure Lifepo4 with excellent safety performance
standard modular, lead-acid replacement battery
powerful BMS provide ultimate protection of the battery

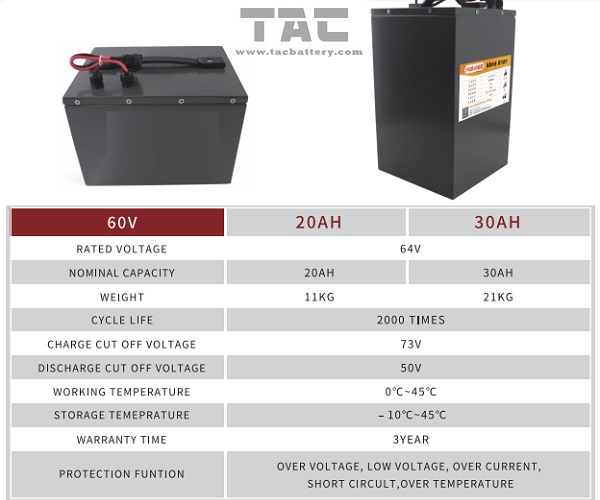

Specification for 60V 20AH 30AH lifepo4 Battery Pack for Motor Tricycle Deep Circle

Item

General Parameter

Remark

Combination method

20S5P

Rated Capacity

)

Typical

30Ah

Standard discharge after Standard charge(package)

Minimum

30Ah

Nominal Voltage

60V-66V

Mean Operation Voltage

Discharge Cut-off Voltage

44.8V

Discharge Cut-off Voltage

Charging Voltage

69.35V

Internal Impedance

≤80mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles less than 5 times

Standard charge

Constant Current 0.2C

Constant Voltage57.6V

0.02CA cut-off

Charge time : Approx6 h

Standard discharge

Constant current:0.2C

end voltage 44.8V

Maximum Continuous Charge Current

15A

Maximum Continuous Discharge Current

35A

Operation TemperatureRange

Charge: 0~45℃

60±25%R.H.

Bare Cell

Discharge: -20~60℃

StorageTemperatureRange

Less than 12 months : -20~25℃

60±25%R.H.

at the shipment state

less than 3 months: -20~40℃

Less than 7 day : -20~60℃

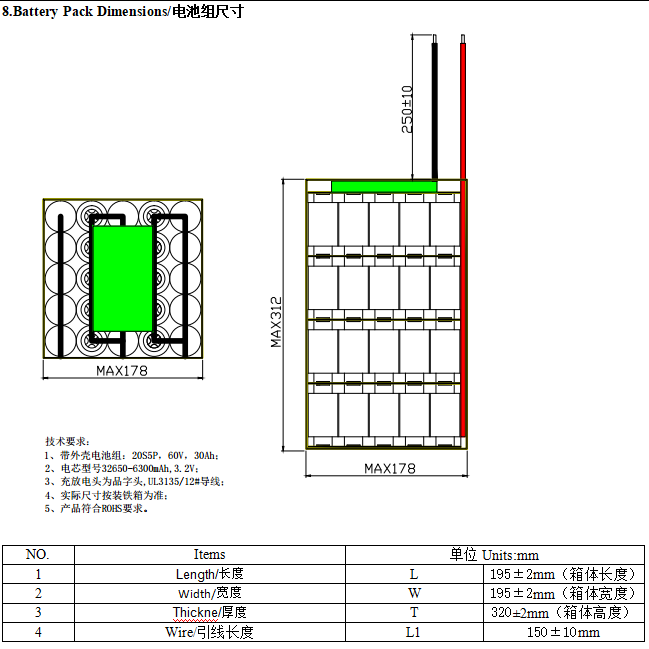

Dimensions

OEM ODM

APPROX

Weight

11.0KG

APPROX

(Delivery SOC)

50%-60%

(Package)

(Paper carton + Wooden Pallet)
