Lithium-ion Backup Power 48V 50AH For Replacement Of VRLA SMF Battery

  • 1
  • 2

Brand Name : TAC OEM & ODM

Model Number : ESS4850-E1-A-02

Certification : MSDS REACH ROHS

Place of Origin : Shenzhen zhuhai

MOQ : 500 pcs for single cell , 50pack for battery packs

Price : usd 2100-2200/wh

Payment Terms : 100% prepaid before shipping out

Supply Ability : 100000PCS EACH WEEK

Delivery Time : 7-10 days after order confirm for stock model

Packaging Details : meet UN38.3 Certification

Model Name : 48V50AH ICR18650 13S25P

Capacity : 50AH

voltage : 48V

power : 2200WH

Whole equipment size : L 470 * W 440* T 88 mm

Circle life : over 500times

warranty : 1 -3 years or circle 500times

PONO : PESN0784

Contact Now

Lithium-ion Backup Power 48V 50AH For Replacement Of VRLA SMF Battery

Specification for Lithium-ion Backup Power 48V 50AH For Replacement Of VRLA SMF Battery



No.


Item


General Parameter


Remark


1

Combination method


13S25P


Single cell 18650 2200mah 3.7v

2

Combination standard
for single cell

Capacity difference≤2%

Combination after 0.15C discharge to 2.5V


Resistance difference ≤10mΩ

Voltage difference≤8mV

3

Rated Capacity


Typical


50Ah

Standard discharge after Standard charge(package)


Minimum


50Ah

4

Nominal Voltage


48V

Mean Operation Voltage


5

Voltage at end of
Discharge


42V

Discharge Cut-off Voltage


6

Charging Voltage



54.6V



7

Internal Impedance


≤100mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles less than 5 times


8

Standard charge


Constant Current 10A
Constant Voltage54.6V
0.01CA cut-off


Charge time : Approx 6 h


9

Standard discharge


Constant current:10A
end voltage 42V




10

Maximum Continuous Charge Current


50A





 Charge And Discharge Data

No.


Item


General Parameter


Remark


11

Maximum Continuous Discharge Current


50A



12

Operation Temperature Range


Charge: 0~45℃

60±25%R.H.
Bare Cell


Discharge: -20~60℃

13

Storage Temperature Range


Less than 12 months : -20~25℃


60±25%R.H.
at the shipment state


less than 3 months: -20~40℃


Less than 7 day : -20~65℃


14

Dimensions


L440*W440*T88(mm)

including the outer shell

15

Weight


18kg

ncluding the outer shell

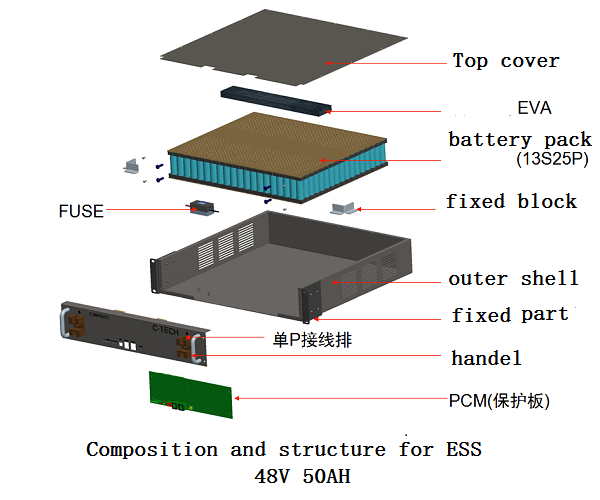

Whole Backup Power Components

Lithium-ion Backup Power 48V 50AH For Replacement Of VRLA SMF Battery







BMS Specification

1) The BMS is designed suit for 13 series lithium battery.

2) The BMS have all functions including of below performance

  1. Overcharge detection function
  2. Over discharge detection function
  3. Over current detection function
  4. Short detection function
  5. Balance function
  6. Temperature detection



Other Similar Production

We can provide customize service for this system with your designing  and this standard module  come with wireless remote monitoring.we can support the wireless remote  monitoring with WIFI and GPRS

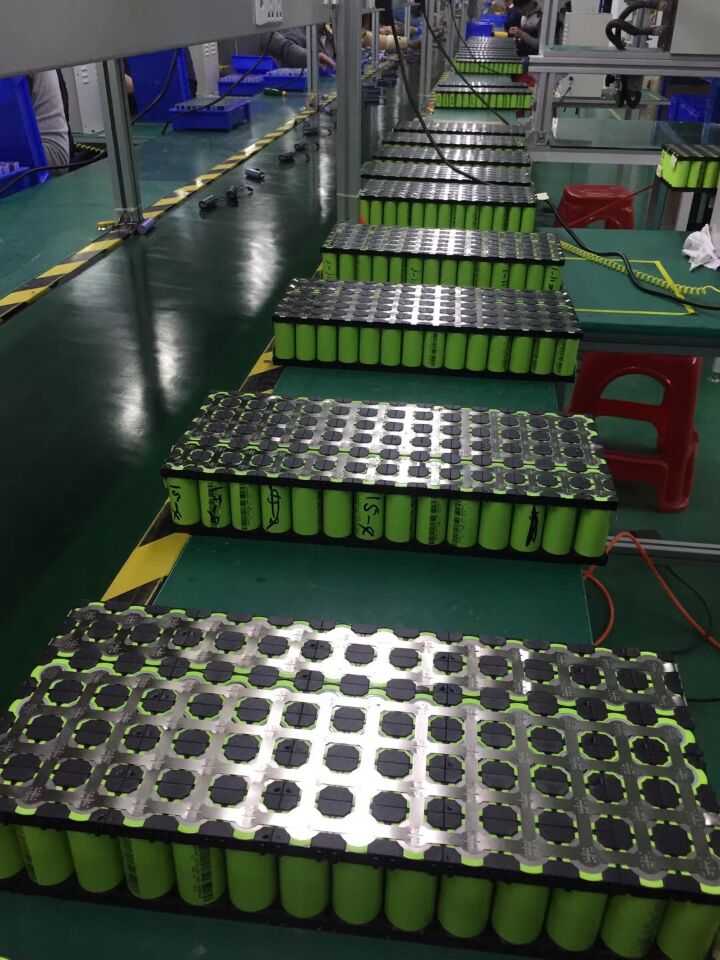

Battery Picture
Lithium-ion Backup Power 48V 50AH For Replacement Of VRLA SMF BatteryLithium-ion Backup Power 48V 50AH For Replacement Of VRLA SMF Battery

Packing Method

Protect the whole equipment with strong pearl wool foam, and then put into strong extra stronger outer carton, also provide wood carton package if you need
Lithium-ion Backup Power 48V 50AH For Replacement Of VRLA SMF Battery

Delivery Date

We can ship out the cargo
1) 30 days after you confirm the order for new production without stock
2) 7 days after you confirm the order for present production with stock

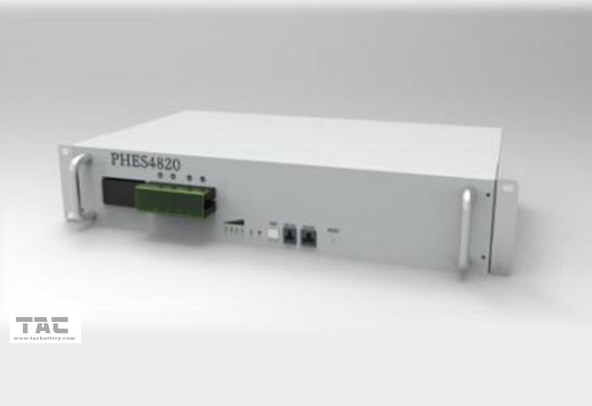

Similar Production as More Capacity And Voltage


Lithium-ion Backup Power 48V 50AH For Replacement Of VRLA SMF Battery
