Lithium Car Battery , 18650 11.1V 6.6Ah LI-ION Battery Pack for Car Power Tool

Brand Name : TAC

Model Number : 11.1V 6.6Ah 18650

Certification : ROHS, REACH

Place of Origin : shenzhen

MOQ : 500 set

Price : USD 20-25

Payment Terms : TT, LC, Paypal, etc

Supply Ability : 100000Piece/days

Delivery Time : 20 DAYS after order confirm

Packaging Details : one pack in one export inner box , 10 box in one carton

Model : ICR18650 11.1V 6.6Ah

Capacity : 6.6Ah

Size : customized

Voltage : 11.1V-12V

Type : Li-ion

OEM & ODM : Support

Circle life : 500 times

warranty : 1 year

BMS : Including

certification : UL \ UN38.3

Contact Now

Lithium Car Battery 18650 11.1V 6.6Ah LI-ION battery pack for Car Power Tool

Specification for Lithium Car Battery 18650 11.1V 6.6Ah LI-ION battery pack for Car Power Tool

Item

General Parameter

Remark

Rated Capacity

Typical

6600mAh

Standard discharge(0.2C5A) after Standard charge

Minimum

6500mAh

Nominal Voltage

11.1V

Mean Operation Voltage

Voltage at end of

Discharge

9.0V

Discharge Cut-off Voltage

Charging Voltage

12.6±0.03V

Internal Impedance

120≤ mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles less than 5 times

Standard charge

Constant Current 0.2C5A

Constant Voltage 12.6V

0.01 C5A cut-off

Standard discharge

Constant current 0.2C5A

end voltage 9.0V

Electronic Performance for Lithium Car Battery 18650 11.1V 6.6Ah LI-ION battery pack for Car Power Tool

Item

General Parameter

Remark

Fast charge

Constant Current 1C5A

Constant Voltage 12.6V

0.01 C5A cut-off

Fast discharge

Constant current 4A

end voltage 9.0V

Maximum Continuous Charge Current

1 C5A

Maximum Continuous Discharge Current

6.6A

Pulse 19.8A

Operation Temperature Range

Charge: 0~45℃

60±25%R.H.

Bare Cell

Discharge: -20~60℃

Storage Temperature Range

Less than 1 year: -20~25℃

60±25%R.H.

at the shipment state

less than 3 months: -20~40℃

Less than 7 day : -20~65℃

Pack Dimension

High/:Max71.0mm

Initial Dimension

Width/:Max60.0mm

Thickness/: Max60.0mm

Application for Lithium Car Battery 18650 11.1V 6.6Ah LI-ION battery pack for Car Power Tool

Standard Test Conditions

Test should be conducted with new batteries within one week after shipment from our factory and the cells shall not be cycled more than five times before the test. Unless otherwise specified, test and measurement shall be done under temperature of 25±5℃ and relative humidity of 45~85%. If it is judged that the test results are not affected by such conditions, the tests may be conducted at temperature 15~30℃ and humidity 25~85%RH.

Temperature Dependence of discharge capacity

Cells shall be charged per 3.3.1 and discharged @0.2 C₅A to 9.0 volts. Except to be discharged at temperatures per Table 3. Cells shall be stored for 3 hours at the test temperature prior to discharging and then shall be discharged at the test temperature. The capacity of a cell at each temperature shall be compared to the capacity achieved at 23 ºC and the percentage shall be calculated. Each cell shall meet standard require

Handling For Lithium Car Battery 18650 11.1V 6.6Ah LI-ION battery pack for Car Power Tool

Do not expose to, dispose of the battery in fire.
Do not put the battery in a charger or equipment with wrong terminals connected.
Avoid shorting the battery
Avoid excessive physical shock or vibration.
Do not disassemble or deform the battery.
Do not immerse in water.

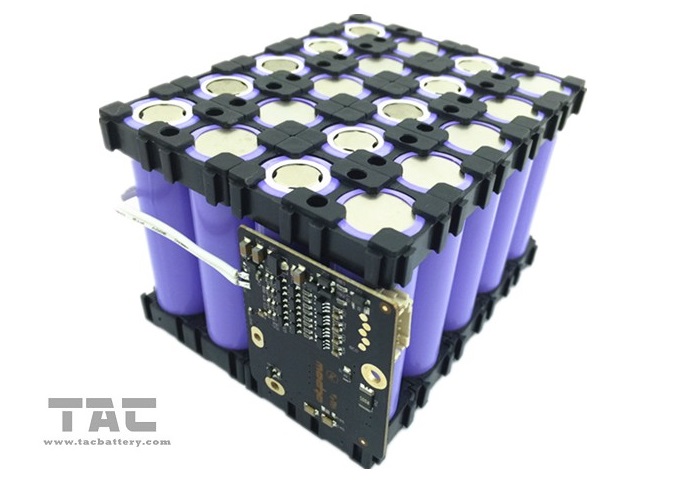

Product photos

Lithium Car Battery , 18650 11.1V 6.6Ah LI-ION Battery Pack for Car Power Tool

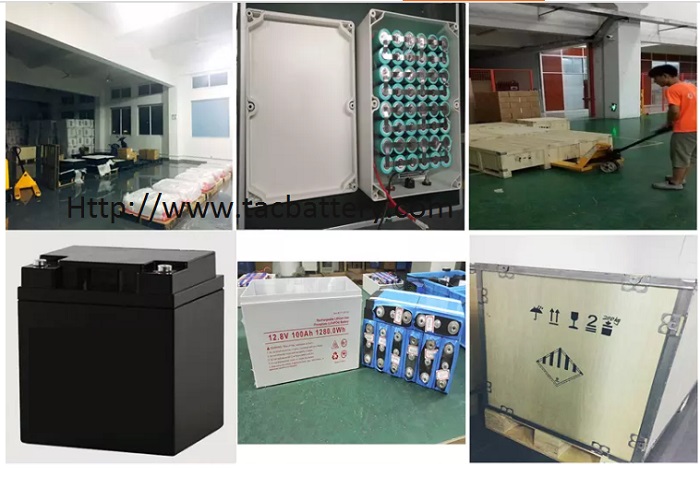

Packing Detail

Lithium Car Battery , 18650 11.1V 6.6Ah LI-ION Battery Pack for Car Power Tool
