Car Battery Pack / 110AH 12V LiFePO4 Battery Pack Replaceable Lead-acid

Brand Name : TAC

Model Number : 12V 110AH

Certification : MSDS REACH ROHS

Place of Origin : SHENZHEN

MOQ : 50 PCS

Price : usd 461-600

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000units/days

Delivery Time : 7-25 days after order confirm

Packaging Details : 1pcs for one bag with UN38.3

Material : Lifepo4

voltage : 12.8v

capacity : 110ah

circle life : 2000times

warranty : 3-5 year

PO NO : PIFP0105

Housing : abs+pc

Contact Now

Car Battery Pack 12V 110AH LiFePO4 Battery Pack Replaceable Lead-acid

Specification

No.	Item	General Parameter	Remark
1	Rated Capacity	110.0Ah	Standard discharge(0.2 C₅)after standard charge(0.2 C₅)
2	Minimal Rated Capacity	105.5Ah	Standard discharge(0.2 C₅)after standard charge(0.2 C₅)
3	Nominal Voltage	12.8V
4	Cycle Life	Higher than 60% of the Initial Capacity of the Cells 60%)	Charge: CC@0.2C to 14.6V, then CV till current to 0.05C Rest: 30min. Discharge: 0.2C to 10.0V Temperature:20±5℃ Carry out 2000cycles
5	Discharge cut-off voltage	10.0V	10.0V( recommended)
6	Charging cut-off voltage	15.6V	14.6V (recommended)
7	Cell and assembly method	IFR26650-3.3AH	4S34P
8	Housing material	ABS+PC housing/

Performance for charge and discharge

No.	Item	General Parameter	Remark
9	Standard charge	0.2C constant current(CC) charge to 14.6V,then constant voltage (CV)14.6V charge till charge current decline to ≤0.05C	Charge time : Approx 7h
10	Standard discharge	Constant current 0.2C Cut-off voltage 10.0V
11	Maximum Charge Current	20A
12	Continuous Discharge Current	20A
13	Operation Temperature Range	Charge: 5~45℃	60±25%R.H.
13	Operation Temperature Range	Discharge): -10~60℃	60±25%R.H.
14	Storage Temperature Range	Less than 1 year : 0~25℃	60±25%R.H. at the shipment state
14	Storage Temperature Range	Less than 3 months:-5~35℃	60±25%R.H. at the shipment state
15	Weight	Approx/: 15.1Kg
16	Max.Dimension	High/:246mm
		Width/: 158mm
		Length/: 260mm

Application for Car Battery Pack 12V 110AH LiFePO4 Battery Pack Replaceable Lead-acid

Car Battery Pack / 110AH 12V LiFePO4 Battery Pack Replaceable Lead-acid

Capacity Test Standard with IEC international test standard

Tac promised provide 100% truth capacity for the battery cell and pack , the battery can be charged and discharged 2000 times with below process: Charging shall consist of charging at a 0.2C constant current rate until the battery reaches 14.6V. The battery shall then be charged at constant voltage of 14.6V volts while tapering the charge current. Charging shall be terminated when the charging current has tapered to 0.05 C₅A. Charge time: Approx 7.0h, The battery shall demonstrate no permanent degradation when charged between 0 ºC and 45 ºC.Battery shall be discharged at a constant current of 0.2C to 10.0V @ 20º ± 5C, and If no otherwise specified, the rest time between charging and discharging is 30min.

payment and shipping method

Payment Terms: T/T, Paypal ,LC and other payments.

We support Door to door price for the samples and CIF for small order , FOB for mass production

We accept DHL, UPS, FedEx ,TNT, EMS etc

We will issue the tracking number the next day after shipment

why choose us

manufacture for lithium-ion polymer lifepo4 cell and pack , we can submit more option base on your design
profession R&D team to issue the best option for your project
prompt reply with 24 hours by mobile email linked-in
Detail specification will be submited with your require after you confirm all the detail

packing and delivery date

the battery protece by thick sponge and strong wood pallet

30days after the customer confirm the order and detail

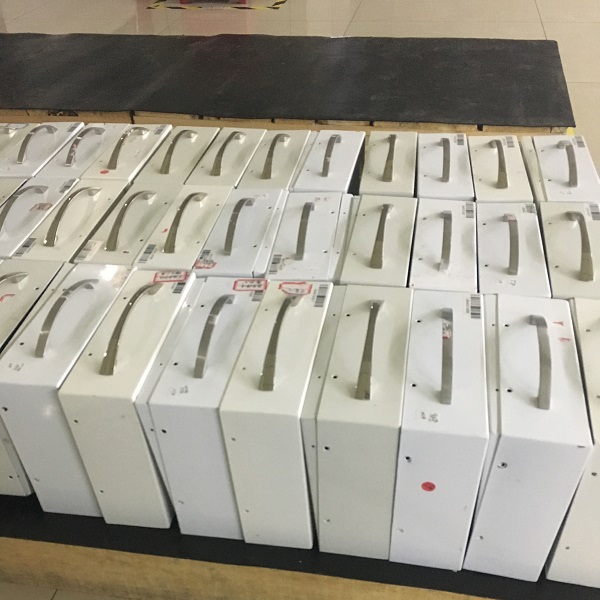

The Photos For Battery Pack

Car Battery Pack / 110AH 12V LiFePO4 Battery Pack Replaceable Lead-acid

quantity control

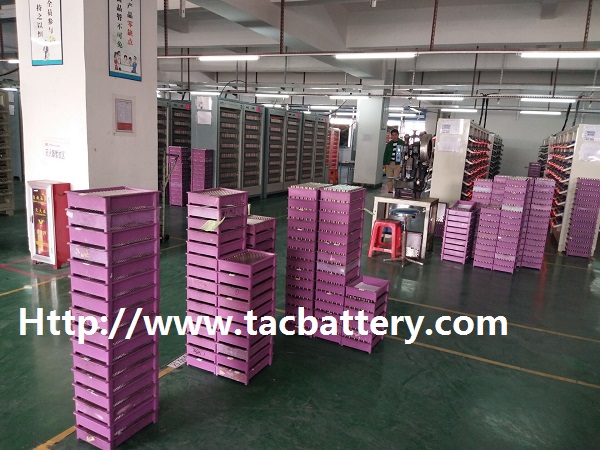

We test the battery cell one by one before product the battery pack

Car Battery Pack / 110AH 12V LiFePO4 Battery Pack Replaceable Lead-acid

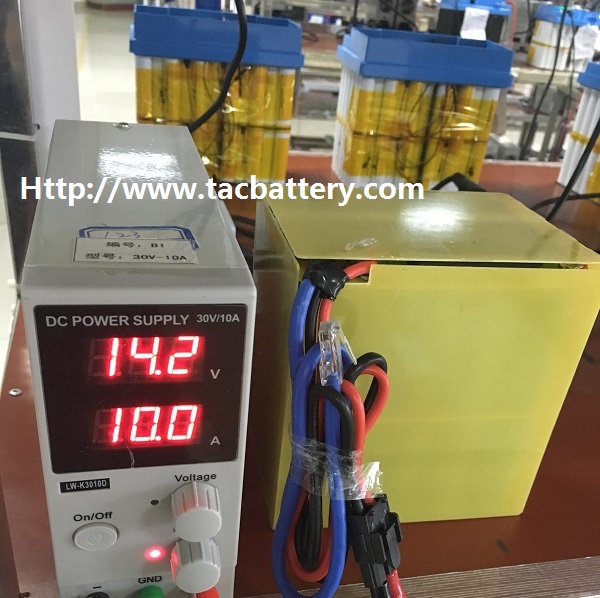

Test the battery pack one by one , record key data by computer

OTher lifepo4 battery pack
