RC UAV Drone Polymer Lithium Ion Batteries 7.4V 5400mAh 2S 25C discharger

Brand Name : TAC

Model Number : 7.4v 5400mah

Certification : ROHS

Place of Origin : guangzhou

MOQ : 500pcs

Price : usd30

Supply Ability : 10000 set/ month

Delivery Time : 25-28days

Packaging Details : 2 set/ inner box 5box / carton

Material : Polymer Lithium Ion Batteries

voltage : 7.4V

capacity : 5400mah

discharge rate : 25Cdischarger

Size : 07*60*94mm

cut off voltage : 5V

PCB : with pcb

pvc color : blue

Application : RC UAV Drone

Contact Now

RC UAV Drone Lithium Polymer Battery Pack 7.4V 5200mAh 2S 25C discharger

Specification for RC UAV Drone Lithium Polymer Battery Pack 7.4V 5200mAh 2S 25C discharger

No.	Items	Specifications
1	Nominal Capacity	5400mAh		1.0C Standard discharge
2	Minimum Capacity	5200mAh		1.0C Standard discharge
3	Nominal Voltage	3.7V		Operation Voltage
4	Delivery voltage	3.80~3.95V		Within 10 days from Factory
5	Charge Voltage	4.2V±0.03V		By standard charge method
6	Standard charging method	0.5C constant current,4.2V constant voltage charge to 4.2V,continue charging till current deline to ≤0.01C
7	Charge current	0.5C	1250mA	Standard charge, charge time:2.5h(Ref)
7	Charge current	1.0C	2500mA	Rapid Charge, charge time:1.5h(Ref)
8	Standard discharging method	1.0C constant current discharge to 3.0V,
9	Cell Internal Impedance	≤20mΩ		Internal resistance measured at AC 1KH_Zafter 50%

Feature:

Polymer lithium -ion battery inside, 100% truth capacity with IEC capacity test standard
flexible assembled method meet 11.1v 14.8v .UAV require
high discharger current from 15 C to 25 C

Manner of Packing

protect the battery pack by buble bag one by one

one buble bag put in one hard paper box

5-10 box for one 7level thickening paper carton

RC UAV Drone Polymer Lithium Ion Batteries 7.4V 5400mAh 2S 25C discharger

Satety test : we test the single cell with UN38.3 certification standard

RC UAV Drone Polymer Lithium Ion Batteries 7.4V 5400mAh 2S 25C discharger

Warranty:

1 Tac battery will be responsible for replacing the cell against defects or poor workmanship

2 for 1years from the date of shipping.

3 Any other problem caused by malfunction of the equipment or mix-use of the cell is not under this warranty.

Similar model

743255SP-1000	1000	3.7	15	7.4	8	7.2	31.92	55.73	5.3	25.42	25C	50C	2.75
923048SP-1000	1000	3.7	14	9.2	6	8.59	30.72	49.79	5.6	24.49	25C	50C	2.75
DJ703060SP-1000	1000	3.7	14	7.0	5.5	6.81	29.8	59.9	4.4	24.19	25C	50C	2.75
403496SP-1100	1100	3.7	15	4	8	4.06	34.64	97.17	4.9	27.49	25C	50C	2.75
553480SP-1200	1200	3.7	15	5.5	4.5	5.2	34.8	80.7	3.8	29.78	25C	50C	2.75
753562SP-1300	1300	3.7	17	7.5	6	7.06	35.24	63.08	4.1	31.2	25C	50C	2.75
DJ823060SP-1300	1300	3.7	14	8.7	5.5	8.74	30.4	59.47	4	31.19	25C	50C	2.75
DJ103052SP-1400	1400	3.7	14	10.5	5.5	10.51	30.81	51.46	4.3	31.79	25C	50C	2.75
683480SP-1500	1500	3.7	15	6.8	8	6.58	33.38	80.58	3.8	36.46	25C	50C	2.75
553496SP-1500	1500	3.7	15	5.5	6	5.39	34.05	97.74	3.6	37.76	25C	50C	2.75
605060SP-1500	1500	3.7	19	6.2	8	5.88	49.61	61.05	3.4	37.5	25C	50C	2.75
4834106SP-1500	1500	3.7	16	4.8	4	4.71	34.5	106.8	3.6	34.05	25C	50C	2.75
DJ853562SP-1500	1500	3.7	16	8.5	4.5	8.54	35.84	63.65	3.7	36.55	25C	50C	2.75
723090SP-1600	1600	3.7	14	7.2	8	6.88	29.95	90.5	3.3	39.16	25C	50C	2.75
103060SP-1600	1600	3.7	17	10	4.5	9.79	29.49	60.43	3.1	35.1	25C	50C	2.75
783480SP-1700	1700	3.7	15	7.8	7	7.34	34.6	48.9	3.3	41.18	25C	50C	2.75
803480SP-1800	1800	3.7	15	8	4.5	7.56	33.45	80.6	3	42.72	25C	50C	2.75
953268SP-1800	1800	3.7	15	9.5	4.5	9.28	32	67.83	3.2	41.43	25C	50C	2.75
703592SP-1900	1900	3.7	17	7.2	6	6.95	35.7	92.84	3.1	47.9	25C	50C	2.75
883480SP-2000	2000	3.7	15	8.8	3	8.06	32.95	80.47	2.9	46.22	25C	50C	2.75
113268SP-2000	2000	3.7	15	11.0	3.5	10.39	31.87	67.78	2.9	45.4	25C	50C	2.75

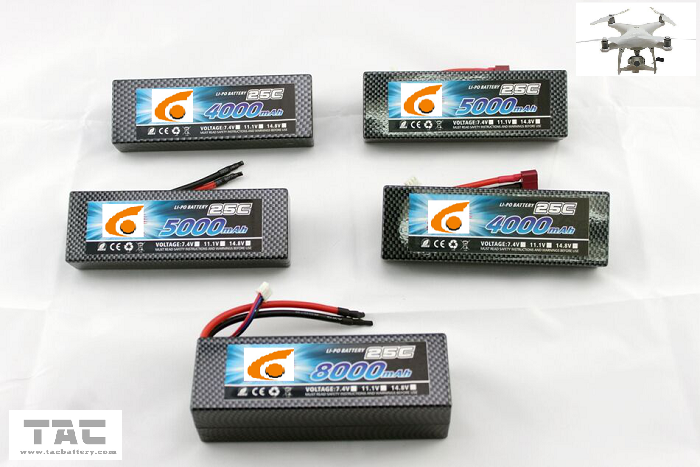

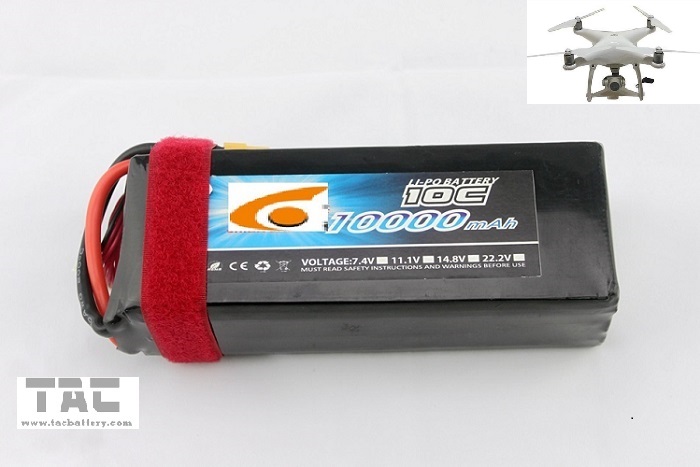

Similar prodution Photos

RC UAV Drone Polymer Lithium Ion Batteries 7.4V 5400mAh 2S 25C discharger
