Square Soft Pack Polymer Lithium Ion Batteries 0865158 3.7V 8000mAh

Brand Name : Tac

Model Number : 0865158 3.6v 8000mah

Certification : UL, Rohs

Place of Origin : guangzhou

MOQ : 500pcs

Price : usd7.0

Payment Terms : T/T, LC,Paypal etc.

Supply Ability : 30K/Day

Delivery Time : 14days after the order confirm

Packaging Details : 20 pcs in one pallet, 10 pallet in one carton

material : polymer lithium

voltage : 3.6-4.2v

capacity : 8000mah

circle life : 500 times

warranty : 12 years

pack : workable

rechargeable : yes

OEM \ODM : Yes

brand : TAC

Accemble : PCB Wire and connector

Contact Now

Lipo Battery 0865158 3.7V 8000mAh Cells Square Soft pack for wireless

Specification for Lipo Battery 0865158 3.7V 8000mAh Cells Square Soft pack for wireless

No.	Item	Rated Performance		Remark
1	Rated Capacity	standard	8000mAh	Standard discharge(0.2C C5A) after Standard charge
2	Nominal Voltage	3.7V-4.2V		Mean Operation Voltage During Standard Discharge After Standard Charge
3	Voltage at end of Discharge	3.0V		Discharge Cut-off Voltage
4	Charging Voltage	4.2±0.03V
5	AC (1KHz) Impedance New Cell Max.(mW)	≤50mΩ
6	Standard charge	Constant Current 0.5C5A Constant Voltage 4.2V 0.01 C5A cut-off		Charge time : Approx 4.0h
7	Standard discharge	Constant current 0.2 C5A end voltage 3.0 V
8	Fast charge	Constant Current 1C5A Constant Voltage 4.2V 0.01 C5A cut-off		Charge time : Approx 2.5h
9	Fast discharge	Constant current 1 C5A end voltage 3.0 V
10	Maximum Continuous Charge Current	1 C5A
11	Maximum Continuous Discharge Current	1.5 C5A
12	Operation Temperature Range	Charge: 0~45℃		60±25%R.H. Be Cell
		Discharge: -20~60℃
13	Storage Temperature Range	Less than 1 year: -20~25℃		60±25%R.H. at the shipment state
		less than 3 months: -20~40℃
14	Weight	Approx :43g		Bare Cell
15	Cell Dimension	Length: Max.51.5mm		Initial Dimension
		Width: Max.55.5mm
		Thickness: Max. 8.8mm

packing method for battery pack

all the polymer battery cell or pack will pack similar with below

10 pcs battery put in the plastic tray and 10 tray in one strong export carton

Square Soft Pack Polymer Lithium Ion Batteries 0865158 3.7V 8000mAh

Delivery Date

the battery can be shipped out within 20 -25 days after the customer confirm the order

if you need specially part for the pack , 30-35 days after all the information are confirmed.

we ship out the cargo by air ocean express with your require

Similar Model for lipo battery

Model	Nominal Voltage (V)	Typical Cap.	Dimension(mm)
Model	Nominal Voltage (V)	(mm)	Thickness	Width	Height
073496DHP	3.7	2100	7.8	34	96
LP0567100	3.7	3400	4.8	67	100
LP066166	3.7	2750	6.1	61	66
LP555376	3.7	2300	5.6	53	76
LP085065	3.7	2600	7.8	50	65
LP085080	3.7	3400	8	50	80
LP0845131	3.7	5100	7.5	45	131
LP0831134	3.7	4000	8.1	31	132
LP55100100	3.7	5600	5.5	100	100
LP605590	3.7	3400	6	55	90
LP9051109	3.7	5500	9	51	109
LP9551119	3.7	6800	9.5	51	119
LP7044125	3.7	4200	7	44	125
LP7545135	3.7	4500	7.5	45	135
LP704374	3.7	2200	7	43	74
LP854374	3.7	3000	8.5	43	74

Application

Application for Lipo Battery 0865158 3.7V 8000mAh Cells Square Soft pack for wireless

the battery customized for wireless equipment, high capacity 8000mah with protect board wire and connector.

and the polymer battery cell can be used in below sevice

Blue tooth
Small medical equipment and portable equipment
airplane
Solar and wind power generation energy storage devices
Remote control cars, boat, aircraft, toys
Medical device,pos machine,CCTV camera,portable device,consumer electronics.
car starter
solar light

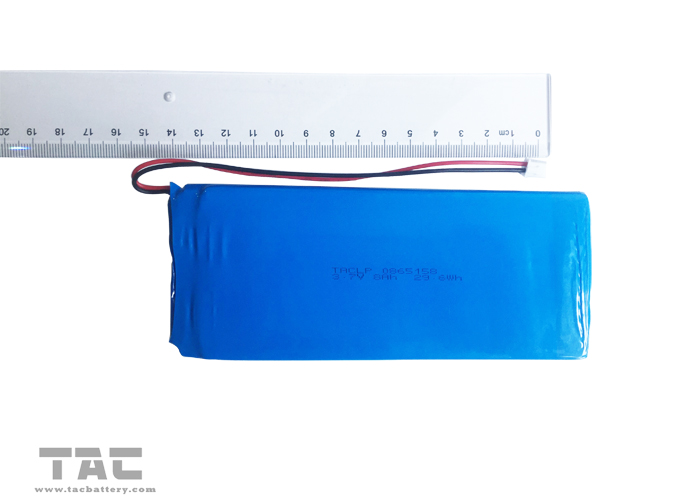

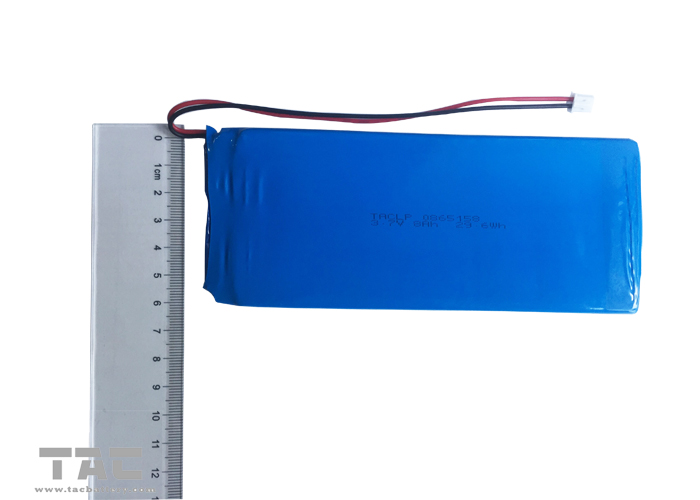

Product photos

Square Soft Pack Polymer Lithium Ion Batteries 0865158 3.7V 8000mAh

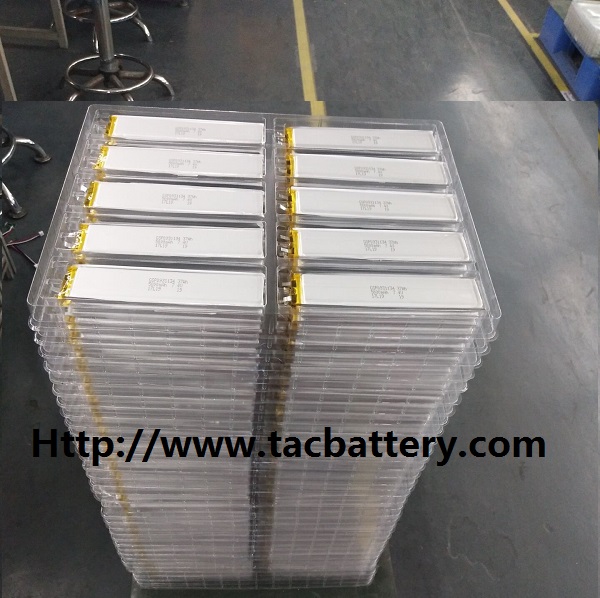

Production Line
